Generation run and component review

The author and reviewer workspace: what the pipeline produced, what the structural gate found, and how each reviewed component maps to a mesh in the candidate. Publication is blocked while any finding is blocking.

Run 7e070b53…

Status	completed
Pipeline	`heart-procedural-component-aware-0.2`
Constraint set	`ks3.heart.structure.v1`
Seed	20260721

GPU	cpu-only-procedural-baseline
Runtime	0.00 s
Peak memory	0 MB
Checkpoint	`procedural-baseline-no-checkpoint`

Compute figures are whatever the last run measured. A CPU-only value here means the notebook has not yet been run on a GPU runtime — do not quote GPU hours from it.

Candidates

Rank	Status	Component coverage	Triangles	Checksum	Failure reasons
1	promoted	100%	22520	`1913d54538b1c0…`	none

A single candidate is a baseline artefact. Experiment E5 in the funding note compares success rate across multiple seeds and candidate counts; the table is built to rank many.

Structural validation passed

Check	Status	Detail
`component_coverage`	pass	all 8 reviewed components present as named nodes
`manifold_edges`	pass	no non-manifold edges detected
`closed_surfaces`	pass	every component surface is closed
`triangle_budget`	pass	22520 triangles against a 120000 budget
`laterality`	pass	anatomical left/right sides are consistent with +X = left
`chamber_topology`	pass	each atrium sits superior to its ventricle

Automated structural checks only. Scientific accuracy, curriculum fit and answer keys still require the named subject reviewer before any pilot use.

Candidate preview

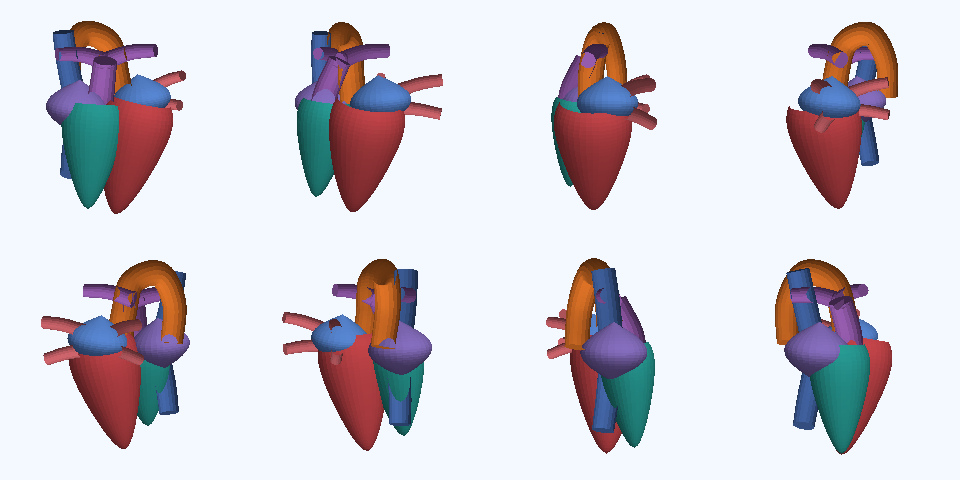

Eight-viewpoint turntable rendered by the pipeline's own rasteriser — the same code path that runs on a Colab GPU. A reviewer judging a candidate from one screenshot cannot see occlusion or backside errors.

Eight viewpoints of the generated heart candidate, rotating through 360 degrees.

Component map

The contract between the asset and the lesson. A raycast returns a mesh node; the node name resolves to a stable component ID; the ID resolves reviewed content and task eligibility. Renaming a mesh without updating this map is a blocking review failure.

Component ID	Mesh node	Label	Triangles	Closed	Assessed by
`heart.right_atrium`	`Right_Atrium`	Right atrium	1408	closed	sequence blood flow
`heart.left_atrium`	`Left_Atrium`	Left atrium	1408	closed	recall left atrium
`heart.right_ventricle`	`Right_Ventricle`	Right ventricle	2088	closed	sequence blood flow
`heart.left_ventricle`	`Left_Ventricle`	Left ventricle	2640	closed	identify left ventricle
`heart.aorta`	`Aorta`	Aorta	2844	closed	explore only
`heart.pulmonary_artery`	`Pulmonary_Artery`	Pulmonary artery	4428	closed	sequence blood flow
`heart.vena_cava`	`Vena_Cava`	Vena cava	2952	closed	sequence blood flow
`heart.pulmonary_vein`	`Pulmonary_Vein`	Pulmonary vein	4752	closed	explore only

Publication gate

Asset licence — verified open: Generated procedurally by the CoreWord SpatialLearn pipeline. No third-party asset is included or redistributed.
Human review — not satisfied: review.reviewer is a demonstrator fixture, not a named subject reviewer.
Structural gate — clear.

Two of the three gates below are deliberately unsatisfied. This lesson is publishable as a demonstrator only; a pilot requires a named reviewer signature bound to this exact lesson version.
